Translucent panels which follow the same building standards as the zipped metal panels.
Continuous Vault for zipped metal roofs.

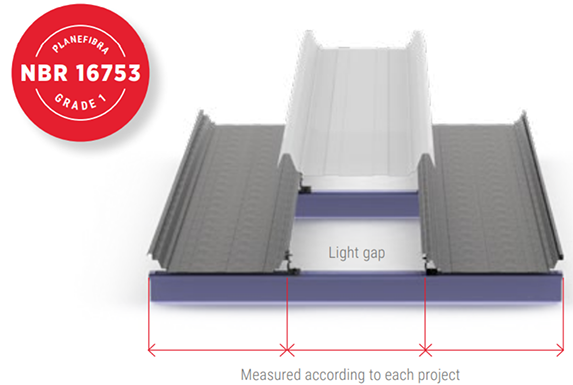

Standard translucent panel for zipped metal roofs.
Planefibra offers a new concept in natural lighting for zipped metal roofing systems.
They are FRP (Fiberglass-reinforced polyester) products that maintain the building architectural aesthetics, ensure excellent water flow and complete watertightness.
Besides guaranteeing the project aesthetics, it also ensures an excellent water flow and complete watertightness, because the fixation is made through a zipping system, resulting in an easy to apply and assemble roofing system.
Besides guaranteeing the project aesthetics, it also ensures an excellent water flow and complete watertightness, because the fixation is made through a zipping system, resulting in an easy to apply and assemble roofing system.
It allows for an excellent natural light passage.
Excellent sealing, ensuring 100% watertightness.
Easy to assemble, through a zipping system.
Adaptable to all the different panel models found in the market.
Each part has an individual tracking number, to guarantee traceability.
Offer fire resistant solutions – IT 10 class II-A.
Exclusive design, patented Planefibra product.

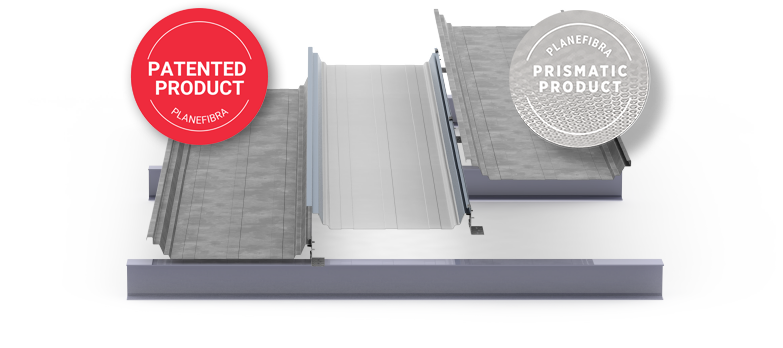

ZIPLAN, Planefibra translucent panel, manufactured in FRP (Fiberglass-reinforced polyester),
with zipped system fixation and adaptable to all the different panel models found in the market.
It does not interfere in the structural dimensions, since it is lighter than the roof tile that will be removed for the panel installation, according to our TECHNICAL MANUAL.

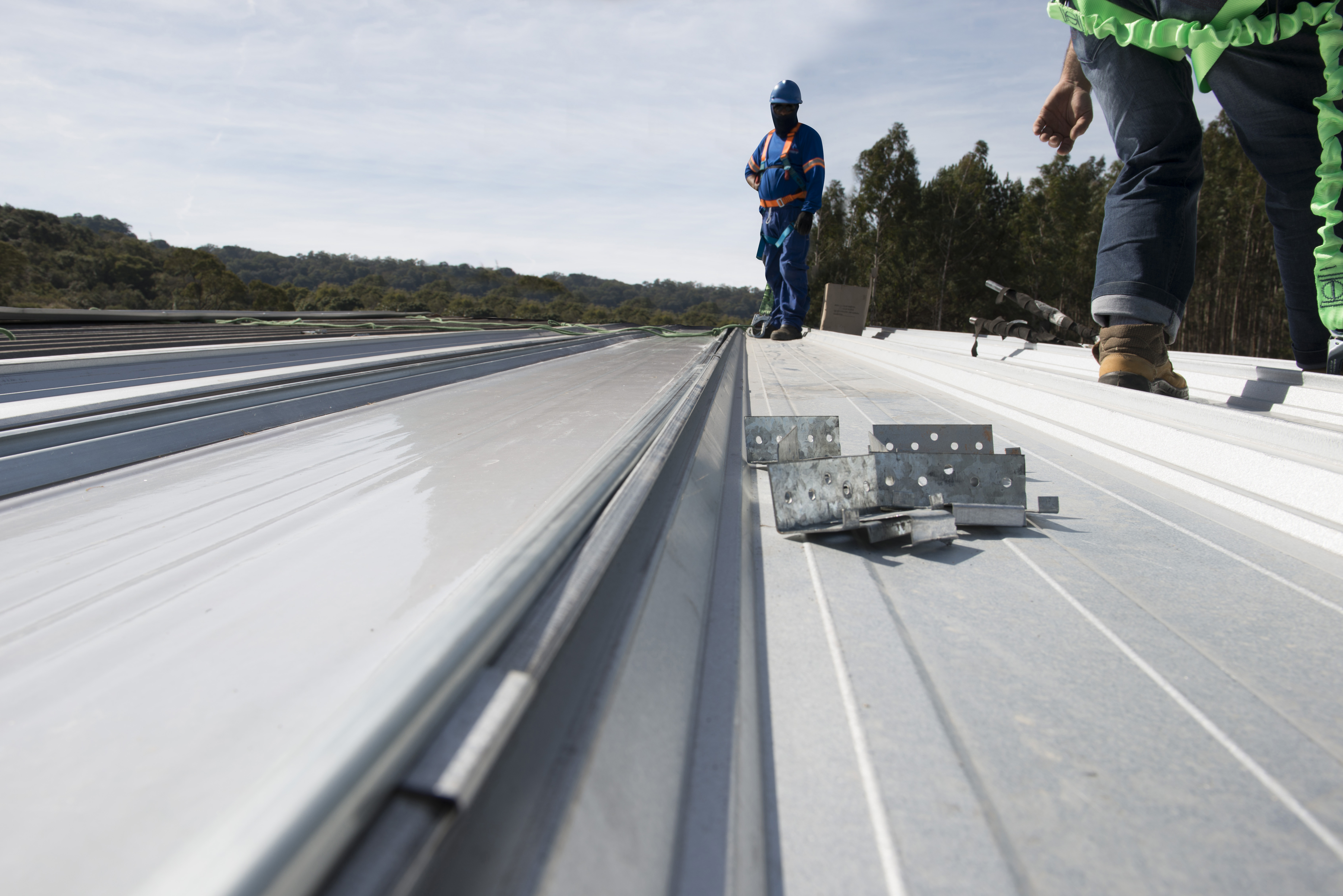

Installation may be performed by the client’s own team, with Planefibra’s technical support, as needed.
• We recommend a light cleaning (water and neutral dishwashing liquid) every semester or every year, depending on the amount of suspended air particles on site. According to our manual – TRANSLUCENT ROOFS CLEANING AND INSPECTION.
Termoplan continuous vaults offer a natural diffusion of daylight, allowing light to spread more evenly throughout the environment. Due to its versatility, it could be used in zipped metal roofs, including air-conditioned environments, which are temperature sensitive, such as home centers, industrial areas, sports and logistics centers.
They allow for the best use of natural lighting, replacing or complementing electrical lighting systems, while greatly reducing external heat, resulting in energy savings and thermal comfort.

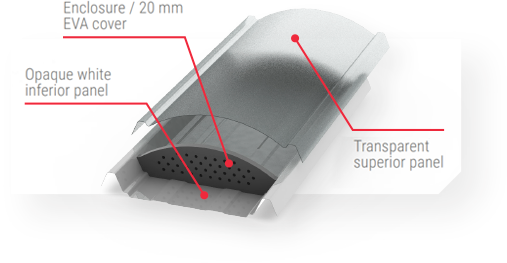

Thanks to the thermal insulation capacity provided through the air pocket, it allows for internal environment temperature control.
Low lighting retention, which allows for an excellent passage of white sunlight.
By using sunlight in an environment, it is possible to considerably reduce energy consumption and costs.
Due to the low thermal conductivity of the air, it reduces condensation inside the environment.

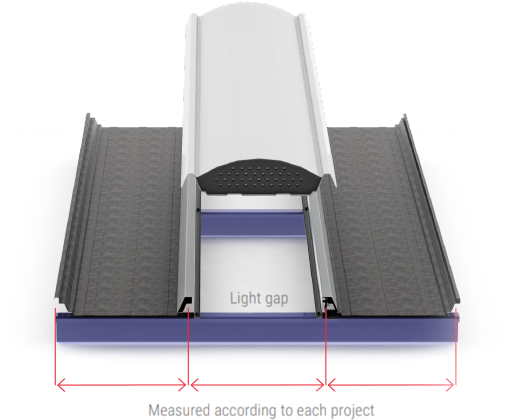

Designed to fit any model of zipped metal panels, its gap fits the space of a metal panel and its edges must overlap it.
The stitch screw is fixed directly to the crest of the zipped panel or fastening clip. This format allows for a greater resistance against the winds.

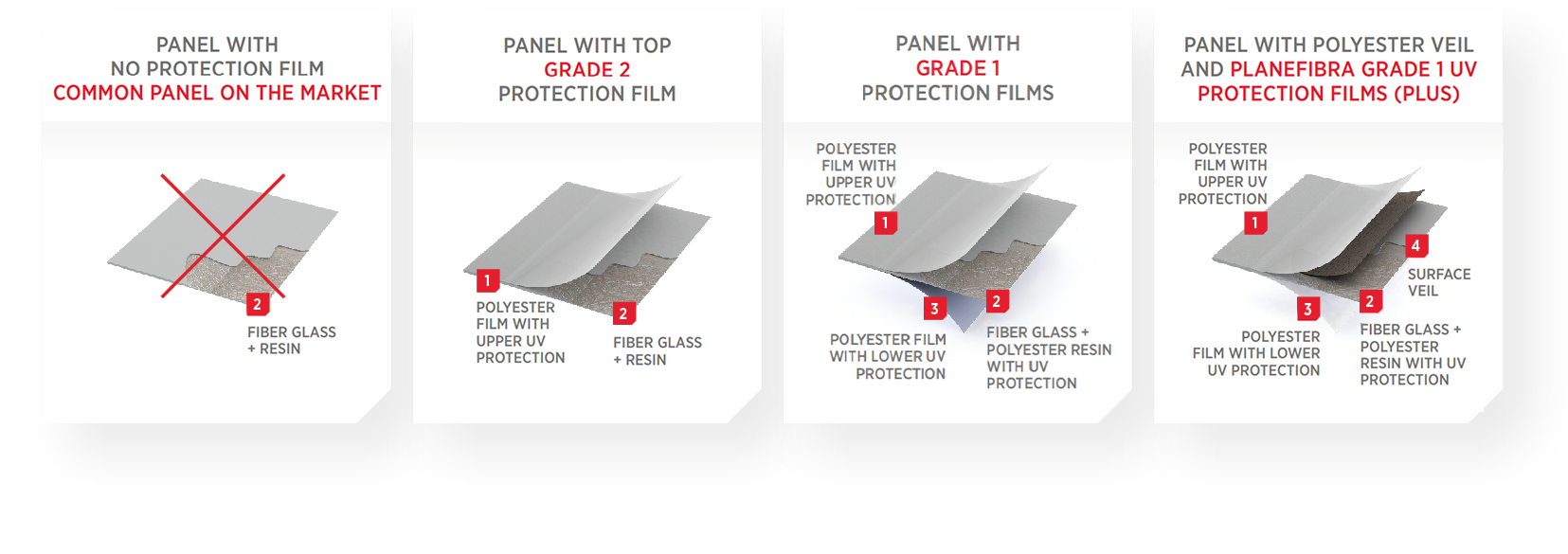

Planefibra panels are the only ones in the market with UV protection polyester film on both sides, as a standard finishing for all models, at no additional cost.
